Puck Phonographs



The Puck style of talking machines was a phenomenon frpm the late 1890's to around 1906. These talking machines were at the lowest-end of the phonographic price range, selling cheaply and sometimes giving away one free with the purchase of 24 cylinders. Most commonly found variety is the cast-iron lyre-shaped Puck. Usually manufactured in France or Germany, many of them have no identifying marks, and were made by 3rd party manufacturers for sale by other companies.

Largets manufactureres were
- George Carrette - a large toy making company

Typically a level surface was needed for the Puck, or the needle would slide off the record . Some Pucks were equipped with a spirit level and adjustable leveling screw to ensure that the cylinder was horisontal. They usually have asmall spring motor that is key-wound. The mandrel is connected to the governor pully with a loop of string.

Though the lyre shaped base is the most typical, and there are many lyre variations, manufacturers were very creative with designs.

Typical standard style Puck

Link to ROMFI

Typical lyre shape. There is a levelling screw for adjustment at the back foot.




It is designed to play wax 2 minute records. It dates from around 1900

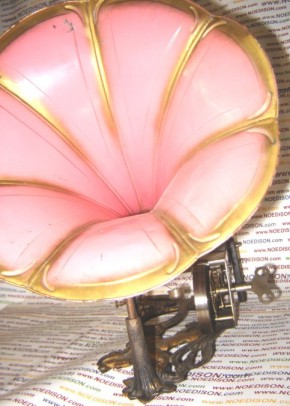

Syrene Puck

Link to ROMFI

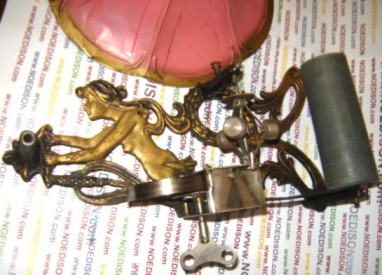

There were a number of variations in the colour of the decoration of this casting style. 2 other different styles of Mermaid themed casting also exist.





xxl

Link to ROMFI


xxx
