Excelsior - Excelsiorwerke Cöln (EWC)


EWC were possibly the largest cylinder phonograph manufacturer in Germany. They were based in Cologne. EWC produced phonographs not only under their own name, but also manufactured for other companies, such as UK Lambert.

Some of the earlier models were quite unique, though the bulk of the later models were somewhat Graphophone type Q clones, though with the motor copmpletely enclosed in a metal casing. Typical for EWC Q type modely is their black finish with red and gold coloured lining.

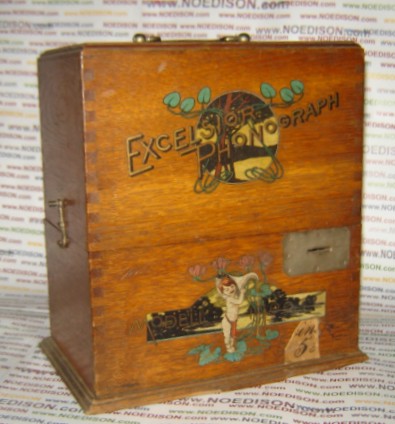

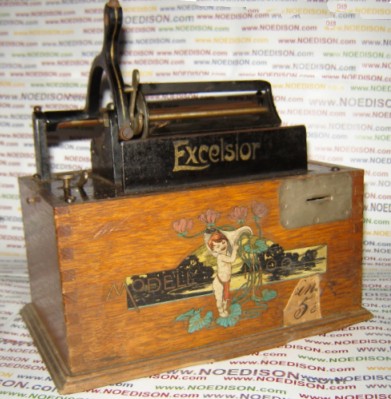

Excelsior tall case - Model 1900

Link to ROMFI

Probably the most decorative transfer on a case for any phonograph. This fancy Art Nouveau transfer, makes it, and the 1902 model extremely distinguishable from other phonographs. The 1900 model had a 3 spoked mandrel, and the phonograph played 2 minute cylinders.

On the lower transfer is written "Modell 1900*

Excelsior tall case - Model 1902

Link to ROMFI

Almost identical to the Modell 1900, except that the mandrel was no longer 3 spoked, but the more usual metal cylinder.

Excelsior Concert

Link to ROMFI

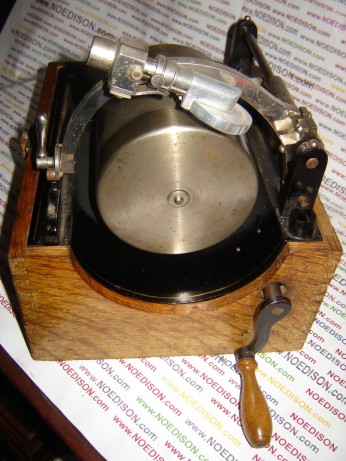

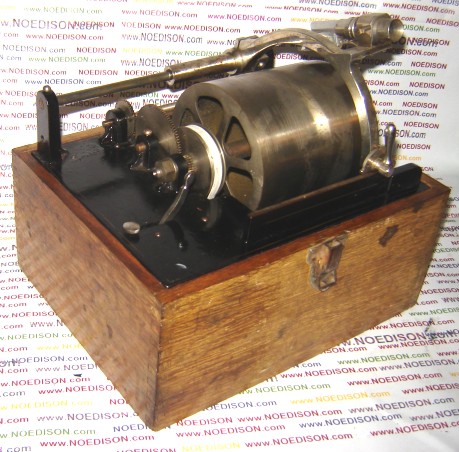

Interestingly designed machine with the mandrel recessed into the case, with the main workings of the motor to the right of the mandrel, under the base plate.

The winding handle is oddly positioned so that it needs to be out of the way for the cylinder to be added or removed.


Excelsior Concert Coin-Op

Link to ROMFI

xx

Excelsior Open Works Q Clone

Link to ROMFI

xx

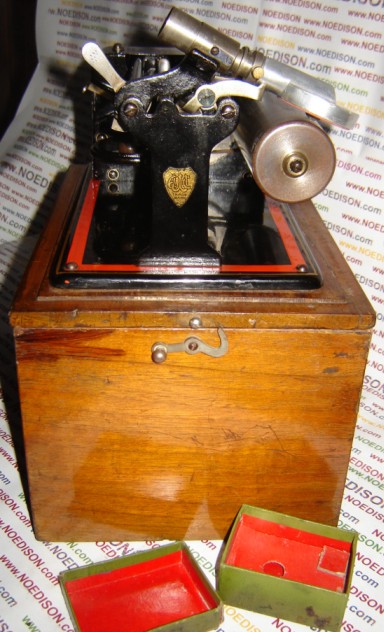

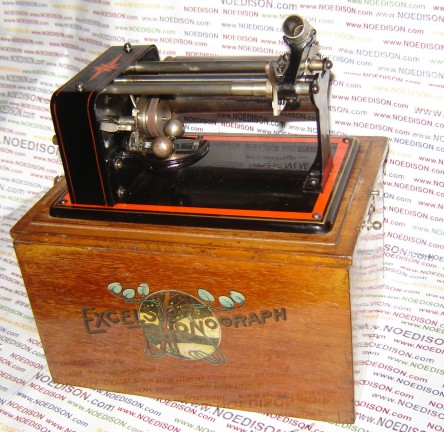

Excelsior "New Century" Export Model

Link to ROMFI

Typical of the EWC Excelsior open works model, this "New Century" destined for the english market, is housed in an flip over case with the 1900-1902 trademark transfer.

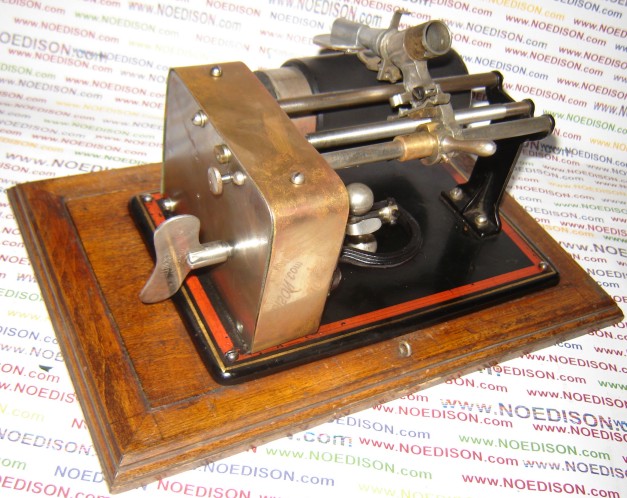

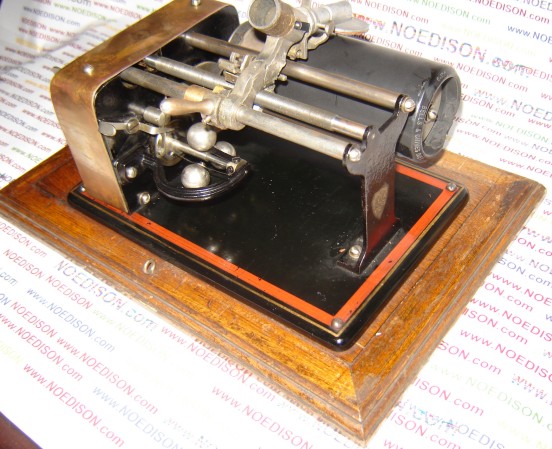

Excelsior Open Works with rectangular nickled motor cover

Link to ROMFI

Inspired by the Graphophone Q, this simple Excelsior has a single spring motor encased in a nickled motor housing. Typical of Excelsior the mechanics are black with red & gold lining. The EWC logo transfer is attached on the end pillar.



Excelsior for Hamburg Newspaper

Link to ROMFI

xx

Excelsior Model 1907 Curved motor cover

Link to ROMFI

xx

Excelsior Model 1907 Straight motor cover

Link to ROMFI

xx

Excelsior Pearl

Link to ROMFI

xx

Excelsior Diamond

Link to ROMFI

xx

Excelsior Ruby

Link to ROMFI

xx
